Box Blade Attachment

Get Adobe Flash player

You need Flash Player to view this movie

close

Box Blade 360° View

Get Adobe Flash player

You need Flash Player to view this movie

Overview
Features
Specs
Compatible Carriers
Accessories

Overview

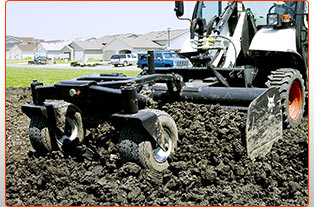

Control grading operation with the accuracy and durability of the box blade attachment.

Designed for maximum performance, the box blade attachment features foam-filled tires which provide excellent floatation to keep the box blade moving smoothly over the work area. For decreased downtime on the job, the cutting edge of the moldboard is reversible and once worn, can be flipped over to provide a fresh cutting blade.

Top Tasks

Without the laser control system:

  • Rough grading and landscaping
  • Fill in low spots
  • Carry materials along to bring the surface close to grade

With the laser control system:

  • Fine and precise grading for flatwork applications

How It Works

The box blade attachment is available in two models: manually operated and laser controlled. The front bolster on the box blade can be raised or lowered to control the height of the cutting edge. Lower the cutting edge to cut and raise it to dump the material.

With the automatic laser control system the laser receiver controls the height of the bolster and cutting edge.

Features

  • Box End Wings: Help to carry more when spreading fine materials such as sand or gravel. Include adjustable and replaceable bottom edges.
  • Fingertip Controls: Raise and lower the blade from the comfort of the cab, providing smooth controls for precise grading.
  • Foam-Filled Tires: Designed for increased uptime protection, tires are filled with foam for guaranteed no flats. Also, add flotation while operating, keeping the box blade moving smoothly over the work area.
  • Oscillating Bolster: Smoothes dips and bumps in the work environment, minimizing the effect of uneven ground and increasing first-pass accuracy.
  • Reversible Cutting Edge: Increases the life of the attachment while providing better uptime protection.

Specs

Box Blade Laser Box Blade
Operating Weight 980 lbs 1020 lbs
Length 64.3 in 64.3 in
Width 85.5 in 85.5 in
Height 32 in 32 in
Box Blade Moldboard Width 84 in 84 in
Moldboard Cutting Edge Reversible Width 0.5 in 0.5 in
Moldboard Cutting Edge Reversible Height 6 in 6 in
Box Blade Grade Accuracy with Laser n/a +/- 0.25 inch

Compatible Carriers

Box Blade Laser Box Blade
All-Wheel Steer Loaders A770 - iT4 A770 - iT4
Compact Track Loaders T180 T190 T550 T590 T630 T650 T180 T190 T550 T590 T630 T650
Skid-Steer Loaders S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4
Utility Work Machine Toolcat 5600 F-Series Toolcat 5610 F-Series

Accessories

  • Automatic Grade Control (Laser Control System): Automatically moves the blade up or down to keep the base material on-grade. Also, for a non-laser box blade, upgrade to the laser control system with the Laser Kit.
