Bobcat Has The Right Tool For The Job

Compatible with these machines


close

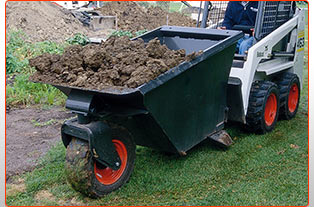

Dumping Hopper Attachment

Get Adobe Flash player

You need Flash Player to view this movie

close

Dumping Hopper 360° View

Get Adobe Flash player

You need Flash Player to view this movie

Overview
Features
Specs
Compatible Carriers

Overview

Go where dump trucks can’t, reduce trips to and from locations and save time and money with the dumping hopper attachment.

The dumping hopper mounts easily on a Bobcat® loader and can be transported, detached and parked wherever it is needed to receive or dump materials – even spaces like backyards and buildings. The large-capacity hopper is easy to fill with a skid-steer loader, compact excavator, or by hand. It empties quickly and easily, saving time by reducing trips back and forth to a dumpsite or receiving truck.

Applications include landscaping, construction, renovation, demolition tasks and cemeteries. The dumping hopper attachment is also a labor saver for municipalities, golf courses and resort hotels.

Top Tasks

  • Move sand and gravel, topsoil and mulch, rubble and rubbish
  • Remove debris from inside buildings to outside dumpsites
  • Transport and dump materials to and from hard-to-reach places

How It Works

Simply park it, load it and dump it. Once the dumping hopper has been filled, it is re-attached to the loader, transported where contents are needed and dumped. The Bob-Tach™ mounting system allows the dumping hopper to tip forward and empty itself, simply by raising the lift arms and rolling out the Bob-Tach system.

Features

  • Bob-Tach™ Mounting System: Allows the dumping hopper to tip forward and empty itself, getting work done quickly and efficiently.
  • Caster Wheel Design: Caster wheel design with flotation tires accommodates a variety of ground conditions and supports the dumping hopper on uneven terrain found on many jobsites. Model 25’s front straddle beam is supported by two caster wheels with flotation tires and oscillates in either direction. The Model 10 dumping hopper has a single caster wheel with flotation tire.
  • Flat Surface: Surface inside the dumping hopper is flat and smooth, preventing materials from sticking when dumping a load.
  • Pre-Drilled Holes: Bottom plate has pre-drilled holes to drain rainwater.

Specs

10 25
Operating Weight 665 lbs 1190 lbs
Length 83 in 83 in
Width 36 in 84 in
Height 40 in 40 in
Capacity (Heaped) 29.7 cubic ft 87.9 cubic ft
Capacity (Struck) 25.65 cubic ft 67.5 cubic ft

Compatible Carriers

10 25
All-Wheel Steer Loaders A770 - iT4
Compact Track Loaders T110 T180 T190 T550 T590 T630 T650 T750 T770 T870
Skid-Steer Loaders S70 S100 S130 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4 S850 - iT4
Utility Work Machine Toolcat 5600 F-Series Toolcat 5610 F-Series
