Compact equipment provides tremendous carrying capacities in a small package.

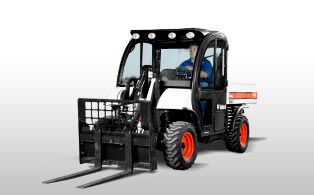

Move bulky, bagged or palletized material quickly and easily with the pallet fork attachment.

Adjustable forks load and unload, lift and carry, move and place materials around a variety of jobsites. With hydraulic pallet fork, position the forks from the operator seat for maximum operator comfort and efficiency.

Save time and labor costs by lifting, carrying, and moving with the pallet fork attachment. Put it to work on applications such as industrial plant and landscaping work, construction sites, farm chores, fertilizer handling, and municipal projects.

Pallet Fork Strength

Make sure your pallet fork is built for years of lifting, carrying and moving materials. In this test, pallet forks are put through a two-part test to evaluate their frame and tine strength. See why Bobcat pallet forks offer strength and endurance that exceed the industry benchmarks.

Top Tasks

  • Lift and move bales
  • Unload landscape rock
  • Transport building supplies
  • Unload freight
  • Unload lumber, shingles, siding, fencing and block

Features

  • ISO 2330:2002 Standards: Bobcat pallet forks meet ISO 2330:2002 standards for yield and fatigue tests. In addition, the frame is thoroughly tested for strength and longevity. Watch the pallet fork strength video to see how other brands compare.
  • Standard and Heavy Duty Teeth: From 30 to 48 inches.
  • Entry/Exit Step: Easier and safer entry and exit from the machine.
  • Visibility: Good visibility at ground and truckbed heights.
  • Two Models with Hydraulically Adjustable Forks: While on the job, adjust positioning of the forks from the operator seat, delivering maximum comfort and efficiency.

Specs

Pallet Fork Frame - Small Pallet Fork Frame - Standard Pallet Fork Frame - Heavy Duty
Operating Weight 105 lbs 200 lbs 470 lbs
Length N/A N/A N/A
Width 36.9 in 45.7 in 51.5 in
Height 34.5 in 38.7 in 49.1 in
Fork Width 4 in 4 in 4 in
Number of Teeth Shipped N/A 0 0
Max Number of Teeth 2 2 2
Frame Weight 105 lbs 200 lbs 470 lbs
Pallet Fork Width 37 in 46 in 56.4 in
Pallet Forks - V417 48" Frame 48" Frame 72" Frame 42" Hyd. 48" Hyd.
Operating Weight N/A 520 lbs 670 lbs 545 lbs 565 lbs
Length N/A N/A N/A 54 in 60 in
Width 49.9 in N/A N/A 48 in 48 in
Height 51.7 in N/A N/A 39 in 39 in
Fork Width 5 in N/A N/A 4 in 4 in
Number of Teeth Shipped 2 N/A N/A 2 2
Max Number of Teeth 2 N/A N/A 2 2
Frame Weight 492 lbs 520 lbs 670 lbs N/A N/A
Pallet Fork Width 48 in 48 in 72 in 42 in 48 in

Compatible Carriers

Pallet Fork Frame - Small Pallet Fork Frame - Standard Pallet Fork Frame - Heavy Duty
All-Wheel Steer Loaders A770 - iT4
Compact Track Loaders T110 T180 T190 T550 T590 T630 T650 T630 T650 T750 T770 T870
Compact Tractors CT122 CT225 CT230 CT235 CT335 CT335SST CT440 CT445 CT445SST CT450 CT450SST
Mini Loaders MT52 MT55
Skid-Steer Loaders S70 S100 S130 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S630 S650 S750 - iT4 S770 - iT4 S850 - iT4
Utility Work Machine Toolcat 5600 F-Series Toolcat 5610 F-Series
VersaHandler TTC V417-Cab VersaHandler
Pallet Forks - V417 48" Frame 48" Frame 72" Frame 42" Hyd. 48" Hyd.
All-Wheel Steer Loaders A770 - iT4 A770 - iT4
Compact Track Loaders T180 T190 T550 T590 T630 T650 T750 T770 T870 T180 T190 T550 T590 T630 T650 T750 T770 T870
Compact Tractors CT335 CT440 CT445 CT445SST CT450 CT450SST CT335 CT440 CT445 CT445SST CT450 CT450SST
Skid-Steer Loaders S130 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4 S850 - iT4 S130 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4 S850 - iT4
Utility Work Machine Toolcat 5600 F-Series Toolcat 5610 F-Series Toolcat 5600 F-Series Toolcat 5610 F-Series
VersaHandler TTC V417-Cab VersaHandler

Options & Accessories

Two Models with Hydraulically Adjustable Forks: While on the job, adjust positioning of the forks from the operator seat, delivering maximum comfort and efficiency.
