Overview

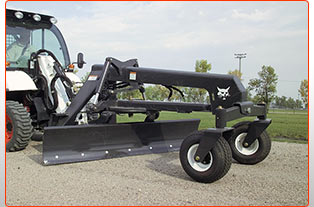

Grade surfaces with precision and control while maximizing productivity with the grader attachment.

The Bobcat® grader attachment excels at high-performance grading. Even delicate tasks can be completed with powerful precision. The grader attachment has a blade that moves six or eight different ways to grade any surface. And the bolster oscillates to minimize the effect of uneven ground, delivering consistent grading performance in a variety of environments.

Achieve a consistent grade with ease and turn your Bobcat loader into a high-performance grading machine with the grader attachment.

Top Tasks

  • Landscaping
  • Asphalt, curbs, gutters and concrete
  • Trail and path construction

How It Works

Hydraulic cylinders independently adjust each side of the moldboard, angle the moldboard and, on larger models, side shift the moldboard. Tires on the bolster provide excellent flotation to keep the grader moving smoothly over the work area.

Smoother operation and quicker reaction of the grader can be gained when paired with the laser control system. With the laser system, the farther the blade is from grade, the more quickly it will move to grade.

Features

  • Dirt Shield: Mounted over the moldboard on larger models, the dirt shield keeps pushed materials moving forward.
  • Flotation Tires: Provide excellent flotation to keep the grader moving smoothly over the work area.
  • Side Shift: Manual side shifts on smaller models move the blade up to 12 in. to the left or right. The hydraulic side shift on larger models provides up to 13 in. to the left or right, making it easier to grade next to buildings, poles, and other obstacles.
  • Oscillating Bolster: Oscillates to the left or right to minimize the effect of uneven ground.
  • Proportional Hydraulic Valve: Offers three speeds at which the moldboard is raised or lowered, meaning operation can be more closely matched to the speed of the loader. The longer the operator presses the button that controls the valve, the faster the moldboard moves. Also provides finer control with automatic grading solutions.
  • Bolt on Reversible Cutting Edge: When the edge wears out it can be flipped over to provide a fresh cutting edge.

Specs

84" Grader 96" Grader 108" Grader
Operating Weight 1375 lbs 2788 lbs 2861 lbs
Length 94.5 in 104 in 104 in
Width N/A N/A N/A
Height 46.7 in 60 in 60 in
Cylinders 3 5 5
Bolster Oscillation 25 +/- deg 12 +/- deg 12 +/- deg
Grader Control Valve 3 spool electric solenoid control 3 spool electric solenoid control 3 spool electric solenoid control
Blade Offset Manual (Right or Left) 12 +/- in N/A N/A
Blade Offset Hydraulic (Right or Left) N/A 13 +/- in 13 +/- in
Moldboard Angle (Right of Left) 25 +/- deg 30 +/- deg 30 +/- deg
Width of Moldboard 84 96 108
Width of Moldboard (Fully Angled) 76.1 83.3 93.7
Moldboard Cutting Edge (reversible) 1/2" x 6" 5/8" x 6" 5/8" x 6"

Compatible Carriers

84" Grader 96" Grader 108" Grader
All-Wheel Steer Loaders A770 - iT4 A770 - iT4 A770 - iT4
Compact Track Loaders T180 T190 T550 T590 T650 T750 T770 T870 T750 T770 T870
Skid-Steer Loaders S130 S150 S160 S175 S185 S205 S510 S530 S550 S570 S590 S630 S650 S750 - iT4 S770 - iT4 S750 - iT4 S770 - iT4 S850 - iT4 S750 - iT4 S770 - iT4 S850 - iT4
Utility Work Machine Toolcat 5600 F-Series Toolcat 5610 F-Series

Options & Accessories

  • Bolt-on End Wing Kit: Helps to carry more material when fine grading or spreading materials such as sand or gravel. Turns the grader into a box blade, eliminating the need for an additional attachment. Option for larger graders.
  • Automatic Control Systems: Increase accuracy and productivity. Automatically moves the blade up or down to keep the base material exactly on-grade. Grader is laser-ready. Laser control and sonic/cross slope systems are available.
