S70 Skid-Steer Loader

S70 Skid-Steer Loader

The compact Bobcat S70 skid-steer loader is small enough to get into the tight spots, yet tough enough to get you out. This agile little workhorse is only 1.8m tall and 0.9m wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings, and it can even take the elevator to transfer between floors. With various attachments, S70 is the strongest in applications of construction, landscaping, etc.

S70 Features

S70 Specifications

Compare

Key Specifications

Horsepower
23.5 hp
Rated Operating Capacity (ISO)
362 kg
Operating Weight
1312 kg

Key Specifications

Horsepower
23.5 hp
Rated Operating Capacity (ISO)
362 kg
Operating Weight
1312 kg

Model

Emissions Tier (EPA)
Tier 4
Loader Series
K-Series
Rated Operating Capacity (ROC) (ISO 14397-1)
362 kg
Tipping Load (ISO 14397-1)
724 kg
Height to Hinge Pin
2399 mm
Lift Arm Path
Radius

Size and Speed

Operating Weight
1312 kg
Bucket Width
914 mm
Cab Height
1814 mm
Travel Speed – Low Range
10.1 km/h
Travel Speed – High Range (Optional 2-Speed Travel)
'-

Engine

Horsepower
23.5 hp
Type
Natural Aspirated
Fuel Tank Capacity
24.6 l

Tires

Bobcat Standard Duty
Standard
Bobcat Heavy Duty
'-
Bobcat Severe Duty
'-
Bobcat Super Float
'-

Control Options

Bobcat Standard (Foot Pedals/Steering Levers)
Standard
Selectable Joystick Control (SJC)
'-
Radio Remote Control (SJC Required)
'-

Machine Features

Air Ride Seat
'-
Back-up Alarm & Horn
Standard
Bobcat Interlock Control System (BICSTM)
'-
Cab with Heat
Optional
Cab with Heat & Air Conditioning
'-
Deluxe Instrumentation (Includes Keyless Start)
'-
Hydraulic Bucket Positioning
'-
Front and Rear Work Lights
Standard
Radio
'-
Ride Control
'-
ROPS/FOPS Approved Cab Structure
Standard
Sound Reduction Package
'-
2-Speed
'-

Features for Attachments

Attachment Control Kit
'-
Bob-Tach Mounting System
Standard
Power Bob-Tach System
'-
Fingertip Auxiliary Hydraulics Control
'-
Hydraulic System Pressure
207 Bar
Hydraulic Standard Flow
37.1 l/min
Hydraulic High Flow (Optional)
'-
"Pressure Release Hydraulic Quick Couplers (Drain port)"
Standard

Similar Machines

  • S16 Skid-Steer Loader S16 Skid-Steer Loader

    S16 Skid-Steer Loader

    The Bobcat® S16 is the right size with enought lift capacity to help you in small spaces.

    Horsepower
    49.6 hp
    Rated Operating Capacity (ISO)
    744 kg
    Operating Weight
    2573 kg

  • S18 Plus Skid-Steer Loader S18 Plus Skid-Steer Loader

    S18 Plus Skid-Steer Loader

    The Bobcat S18 Premium Edition is an upgraded version of the S18.

    Horsepower
    49.6 hp
    Rated Operating Capacity (ISO)
    894 kg
    Operating Weight
    2673 kg

  • S510 Skid-Steer Loader S510 Skid-Steer Loader

    S510 Skid-Steer Loader

    The Bobcat® S510 skid-steer loader is the first model in the popular 500 frame size - a popular choice for earth-moving work.

    Horsepower
    55 hp
    Rated Operating Capacity (ISO)
    851 kg
    Operating Weight
    1703 kg

  • S530 Skid-Steer Loader Bobcat S530 Skid-Steer Loader

    S530 Skid-Steer Loader

    It might be small, but the popular Bobcat S530 uses new high flow hydraulics to ensure no task is out of reach.

    Horsepower
    48.9 hp
    Rated Operating Capacity (ISO)
    869 kg
    Operating Weight
    2815 kg

  • S550 Skid-Steer Loader S550 Skid-Steer Loader

    S550 Skid-Steer Loader

    If you’re looking for a powerful radius lift path loader in the 500 frame size, choose the Bobcat® S550.

    Horsepower
    68.9 hp
    Rated Operating Capacity (ISO)
    926 kg
    Operating Weight
    2995 kg

  • S590 Skid-Steer Loader S590 Skid-Steer Loader

    S590 Skid-Steer Loader

    Reach higher with more power! The Bobcat® S590 skid-steer loader is the highest-lifting, most powerful model in the popular 500 frame size.

    Horsepower
    68.9 hp
    Rated Operating Capacity (ISO)
    953 kg
    Operating Weight
    3069 kg

  • S70 Skid-Steer Loader S70 Skid-Steer Loader

    S70 Skid-Steer Loader

    The compact Bobcat S70 skid-steer loader is small enough to get into the tight spots, yet tough enough to get you out.

    Horsepower
    23.5 hp
    Rated Operating Capacity (ISO)
    362 kg
    Operating Weight
    1312 kg

  • S76 Skid-Steer Loader S76 Skid-Steer Loader

    S76 Skid-Steer Loader

    The S76 skid-steer loader is designed to help you accomplish more with one machine.

    Horsepower
    74 hp
    Rated Operating Capacity (ISO)
    1338 kg
    Operating Weight
    3907 kg

  • S86 Skid-Steer Loader S86 Skid-Steer Loader

    S86 Skid-Steer Loader

    The S86 gives you unparalleled performance and lift capabilities.

    Horsepower
    105 hp
    Rated Operating Capacity (ISO)
    1587 kg
    Operating Weight
    4412 kg

Popular Attachments

View All
  • Angle Broom - 52" Angle broom

    Angle Broom - 52"

    Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
  • Angle Broom - 64" Angle Broom

    Angle Broom - 64"

    Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
  • Deluxe Landplane - 72" Landplane

    Deluxe Landplane - 72"

    A landscaping must.
  • Drop Hammer Drop Hammer

    Drop Hammer

    The drop hammer is intended for demolition of large surface areas such as concrete roads and driveways.
  • Dumping Hopper - Model 10 Dumping Hopper

    Dumping Hopper - Model 10

    Park it, load it and dump it.
  • Grapple - Utility, 32" Grapple, Utility

    Grapple - Utility, 32"

    Lift, and move loose materials such as manure, bedding, and hay.
  • Nitrogen Breaker - NB140 Nitrogen Breaker

    Nitrogen Breaker - NB140

    The nitrogen breaker requires minimal maintenance and reduces wear on your carrier.
  • Packer Wheel Packer Wheel

    Packer Wheel

    Achieve compaction without the need for auxiliary hydraulics.
  • Scraper Scraper

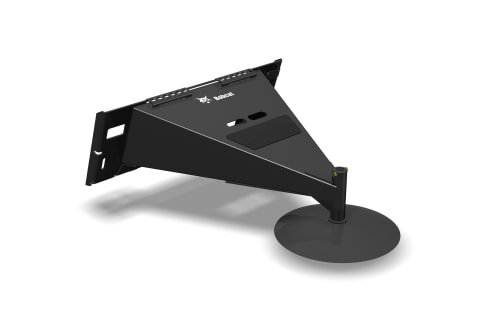

    Scraper
