E27 Mini Excavator

E27 Mini Excavator

The new Bobcat® conventional tail swing E27 model introduces an in-class unique combination of superior stability, class leading digging performance and breakout forces, together with a transport weight that is still below the weight limits for appropriate trailers. Even with the optional heavy counterweight, the E27 offers just 280mm of tail overhang which allows the machine to be operated in confined spaces. This makes the machine an ideal tool for highly demanding applications where performance together with transportability have a priority over compactness.

E27 Specifications

Compare

Key Specifications

Operating weight
2683 kg
Digging depth
2.8 m
Engine power
18.3 kW
Digging breakout force
16030 N
Tail swing type
CTS

Key Specifications

Operating weight
2683 kg
Digging depth
2.8 m
Engine power
18.3 kW
Digging breakout force
16030 N
Tail swing type
CTS

Weights

Operating weight with cab and bucket (ISO 6016)
2683.00 kg
Transport mass (no attachment)
2549.00 kg
Weight reduction with canopy
-118.00 kg
Additional weight for steel tracks
130.00 kg
Additional weight for heavy counterweight:
147.00 kg
Ground pressure with rubber tracks
26.20 kPa

Working Range

Bucket pivot angle
185.00 °
Maximum reach of working equipment
4721.00 mm
Maximum reach at ground level
4604.00 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted
1924.00 mm
Maximum blade height
346.00 mm
Maximum blade height with long blade
385.00 mm
Maximum blade depth
302.00 mm
Maximum blade depth with long blade
420.00 mm
Maximum height of working equipment with dipperstick retracted
3240.00 mm
Maximum bucket tooth height
4429.00 mm
Maximum dump height
3243.00 mm
Maximum depth of vertical wall which can be excavated
1825.00 mm
Maximum digging depth
2847.00 mm

Dimensions

Blade height
319.00 mm
Clearance, upper structure to ground line
539.00 mm
Ground line to top of engine cover
1540.00 mm
Length of track on ground
1543.00 mm
Machine centre line to blade
1245.00 mm
Ground clearance
1462.00 mm
Minimum radius in travel position
3135.00 mm
Overall length of track assembly
1965.00 mm
Overall length in travel position
4079.00 mm
Overall length in travel position with Heavy counterweight
4190.00 mm
Track lug height
21.00 mm
Blade width
1550.00 mm
Height
2438.00 mm
Track width
300.00 mm
Machine centre line to working equipment centre line, left-hand rotation
393.00 mm
Machine centre line to working equipment centre line, right-hand rotation
576.00 mm
Minimum turning radius
1575.00 mm
Swing clearance, rear
995.00 mm
Swing clearance, rear with heavy counterweight
1055.00 mm
Working width at maximum right-hand rotation
1808.00 mm
Working width at maximum left-hand rotation
1731.00 mm
Working width at maximum left-hand rotation with heavy counterweight
1791.00 mm

Engine

Make / model
Kubota / D1305-E4B-BCZ-1 (Stage V)
Fuel
Diesel
Number of cylinders
3
Displacement
1261.00 cm3
Maximum power @ 2400 rpm (ISO 14396)
18.30 kW
Maximum torque (SAE)
81.30 Nm

Hydraulic System

Pump type
Dual outlet variable displacement piston pump with gear pumps
Total hydraulic capacity
94.30 L/min
Auxiliary (AUX1) flow
54.00 L/min
Auxiliary (AUX2) flow
20.00 L/min
Auxiliary (AUX1) relief
180.00 bar
Auxiliary (AUX2) relief
179.00 bar

Performance

Digging force, dipperstick (ISO 6015)
16030.00 N
Digging force, bucket (ISO 6015)
26520.00 N
Drawbar pull
28949.00 N
Travel speed, low range
3.00 km/h
Travel speed, high range
5.10 km/h

Slew System

Boom swing, left
70.00 °
Boom swing, right
55.00 °
Slew rate
9.30 RPM

Fluid Capacities

Fuel reservoir
34.40 L
Hydraulic reservoir
10.20 L

Environmental

Noise level LpA(EU Directive 2006/42/EC)
78.00 dB(A)
Noise level LWA(EU Directive 2000/14/EC)
93.00 dB(A)
Whole body vibration (ISO 2631–1)
0.13 ms2
Hand-arm vibration (ISO 5349–1)
0.44 ms2

Standard Features

1550 mm dozer blade
yes
300 mm rubber tracks
yes
Adjustable double acting auxiliary hydraulic (AUX1) with Quick Couplers
yes
Battery disconnect switch
yes
Blade float feature
yes
Clamp ready
yes
Control console locks
yes
Cupholder
yes
Dual Direction Detent
yes
Engine/hydraulic monitor with shutdown
yes
Foldable and ergonomic travel pedals
yes
Full fuel warning alarm
yes
Horn
yes
Proportional fingertip auxiliary and boom swing offset hydraulic control
yes
Retractable seat belt
yes
Suspension seat with high back
yes
Storage compartment
yes
TOPS/ROPS/FOPS canopy *
yes
Two-speed travel with Auto shift
yes
Upper structure four-point tie down
yes
Water separator
yes
Work light (boom)
yes
Warranty: 24 months, 2000 hours (whichever occurs first)
yes

Options

Comfort package cab (Cloth susp. seat & Dlx displ.)
yes
A-SAC package (Tilt coupler lines, Dlx displ.)
yes
Object handling package (Valves, OWD, Lifteye)
yes
TOPS/ROPS/FOPS cab
yes
Heavy counterweight
yes
Steel tracks
yes
AUX1 direct return to tank
yes
AUX2 hydraulics
yes
AUX1/AUX2/Drain on arm
yes
Bucket valves (AUX3) kit
yes
Hydr. coupler lines (AUX5)
yes
Case drain line
yes
Auto idle
yes
Keyless ignition
yes
Travel motion alarm
yes
AM/FM MP3 radio
yes
Additional halogen lights
yes
LED lights set
yes
Beacon
yes
Special application kit
yes
L/R mirrors
yes
Clamp w/ AUX1 valve
yes
Klac D and MS03 coupler
yes
Bobcat hydr. pin grabber
yes
Grease Gun w/ holder
yes

E27 Features

Popular Attachments

View All

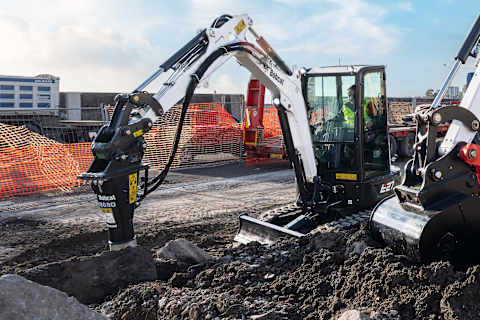

  • Auger Auger
