Tiller
Tractor Implement

Tiller
Tractor Implement

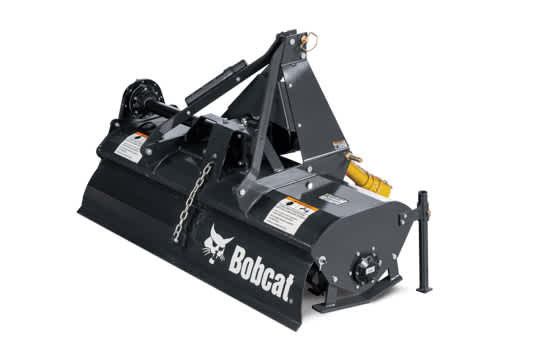

  • Built for easy and efficient soil preparation, the 3-point tiller quickly turns a backyard plot into a soil bed
  •  Perfect for cultivating, aerating and stirring up soil for gardens, food plots and other tillage needs
  • Switch between forward or reverse rotation for top-cutting and under-cutting in either direction
  • Adjustable runners support tilling up to 7 inches deep
  • Designed to work close to buildings, fences and trees

Features & Benefits

Top Tasks

  • 3-point tiller tears through clumps and loosens soil
  • Mixes compost, fertilizer, manure and mulch into the soil
  • Adds amendments to flower beds
  • Prepares land for planting
  • Removes weeds between rows

How It Works

The tiller is a power-take-off- (PTO) driven implement, so it does not require its own engine or motor. The PTO transfers the power from the compact tractor engine to the tiller. You simply attach the tiller to the 3-point hitch and engage the PTO shaft to the tractor. The tiller tines rotate in the opposite direction as the tires when the tractor is moving forward and cover the tire tracks for a consistent finish, eliminating tiller side-shifting, and reducing the need for more than one pass to complete the work. It is important to know if your tractor offers independent PTO or live PTO when engaging your implement. Please read the owner’s manual thoroughly.

Compatible Models

Specifications

Units

General

Operating Weight
591 lb
638 lb
718 lb
Width
52.5 in
64 in
76 in
Height
30 in
30 in
30 in
Drive
540 PTO with Slip Clutch protection
540 PTO with Slip Clutch protection
540 PTO with Slip Clutch protection
Tine Rotation
211 RPM @540 PTO
211 RPM @540 PTO
211 RPM @ 540 PTO
Cutting Width
46.5 in
58.8 in
70.6 in
Blade Box - Number of Blades
Zero
Zero
Zero
Blades per flange
Zero
Zero
Zero
Mower Tractor PTO
Speed 540 RPM HP 12-20
Speed 540 RPM HP 12-20
Speed 540 RPM HP 12-20
Tractor PTO HP
20 hp
20 hp
20 hp

General

Operating Weight
591 lb
638 lb
718 lb
Width
52.5 in
64 in
76 in
Height
30 in
30 in
30 in
Drive
540 PTO with Slip Clutch protection
540 PTO with Slip Clutch protection
540 PTO with Slip Clutch protection
Tine Rotation
211 RPM @540 PTO
211 RPM @540 PTO
211 RPM @ 540 PTO
Cutting Width
46.5 in
58.8 in
70.6 in
Blade Box - Number of Blades
Zero
Zero
Zero
Blades per flange
Zero
Zero
Zero
Mower Tractor PTO
Speed 540 RPM HP 12-20
Speed 540 RPM HP 12-20
Speed 540 RPM HP 12-20
Tractor PTO HP
20 hp
20 hp
20 hp

Additional Details

Built for easy and efficient soil preparation, the 3-point tiller implement quickly turns a backyard plot into a soil bed for gardening. It’s perfect for cultivating, aerating and stirring up soil for gardens, food plots and other tillage needs.

This compact tractor implement can be switched between forward or reverse rotation, allowing top-cutting and under-cutting in either direction. Each flange includes six tines for more efficient digging with less vibration. Oil-bath lubrication with an all-gear-driven driveline delivers better performance and less maintenance. Designed to work closer to buildings, fences and trees.
