Excavator Bucket Attachments
Grading Pin-On Bucket
Compact Excavator Attachments
Attachment size and configuration may be different than image(s) provided. See dealer for full product details.

Grading Pin-On Bucket
Compact Excavator Attachments

Available sizes
Compatible Machines:
Compact Excavators

Overview

  • Smooth lip for finish grading, cleaning ditches, backfilling and leveling

Features & Benefits

Compatible Models

Specifications

Units

General

Bucket - Grading, 32"
Bucket - Grading, 54"
Bucket - Grading, No Teeth, 39"
Bucket - Tilt, 48"
Length
11.7 in
21.7 in
15.5 in
19.6 in
Model Name (Public)
Bucket, Grading - 32"
Grading Bucket - 54"
Bucket, Grading No Teeth - 39"
Tilt Bucket - 48"
Operating Weight
58 lbs
620 lbs
146 lbs
656 lbs
Width
31.4 in
55 in
39.2 in
49 in
Height
12.75 in
26 in
13.4 in
26 in

Performance

Bucket - Grading, 32"
Bucket - Grading, 54"
Bucket - Grading, No Teeth, 39"
Bucket - Tilt, 48"
Operating Weight
58 lbs
620 lbs
146 lbs
656 lbs

Dimensions

Bucket - Grading, 32"
Bucket - Grading, 54"
Bucket - Grading, No Teeth, 39"
Bucket - Tilt, 48"
Length
11.7 in
21.7 in
15.5 in
19.6 in
Width
31.4 in
55 in
39.2 in
49 in
Height
12.75 in
26 in
13.4 in
26 in

Bucket Specs

Bucket - Grading, 32"
Bucket - Grading, 54"
Bucket - Grading, No Teeth, 39"
Bucket - Tilt, 48"
ISO Heaped Capacity
1.5 cubic ft
14.1 cubic ft
3.1 cubic ft
12.5 cubic ft
ISO Struck Capacity
0.9 cubic ft
.32
2.1 cubic ft
.24

Excavator Buckets

Request Price Quote

Tell us a bit about yourself, and we'll have your nearest dealer reach out to help with pricing and availability.

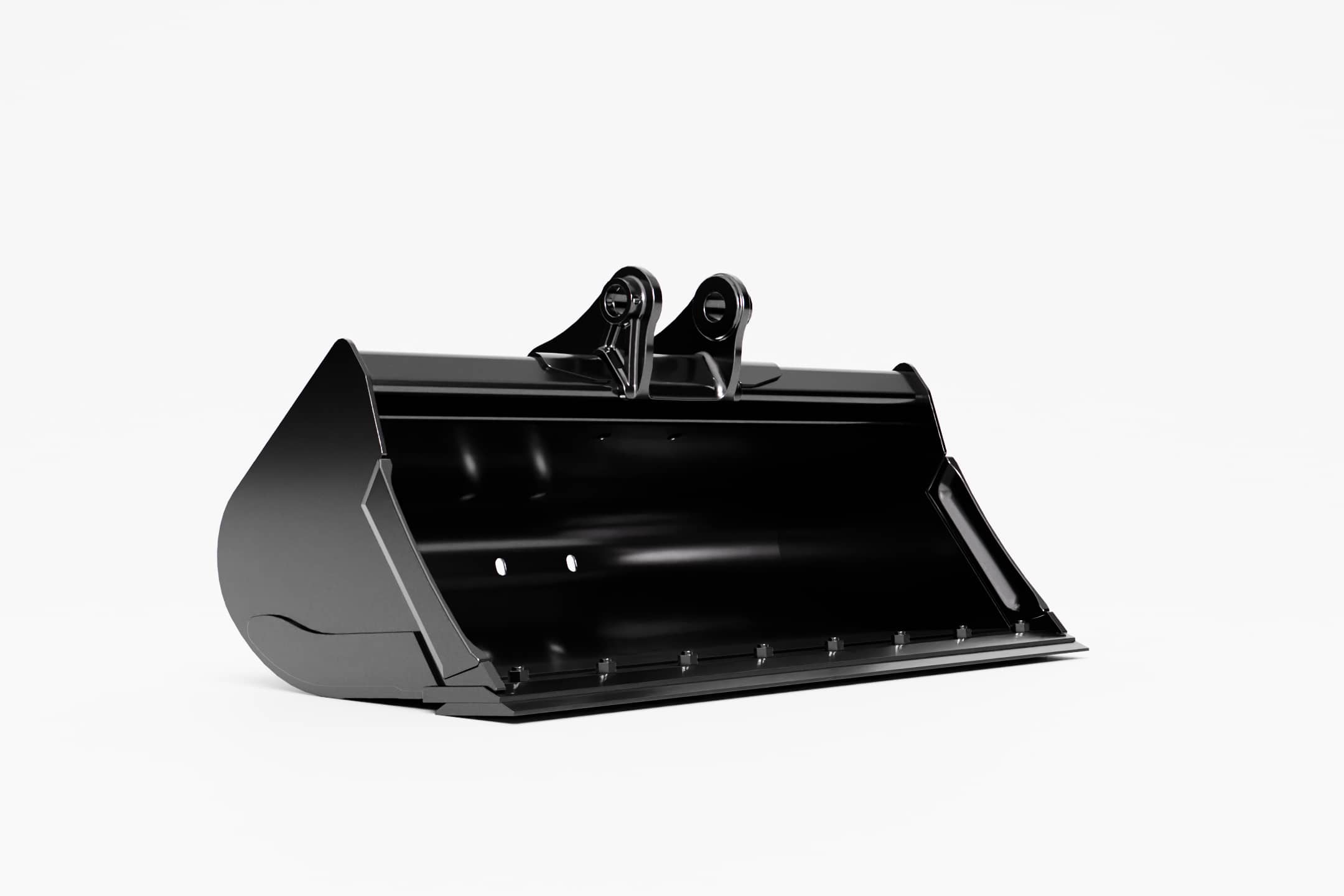

    Bobcat Compact Excavator Grading Bucket on a White Background



    WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
