T595
Compact Track Loader

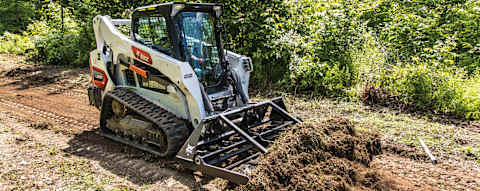

T595 Compact Track Loader
Take productivity to new heights with powerful breakout forces and hydraulics, streamlined maintenance and fast cycle times.
- Standard Selectable Joystick Control
- You won’t find a tougher track system
- Powerful hydraulic performance
- Cold weather engine protection
T595 Overview
- The 70-hp Bobcat® T595 compact track loader is designed to deliver more usable horsepower, so you can work quicker, lift more and outperform the competition.
- Get all the productivity-enhancing features your projects demand, including rapid cycle times, powerful breakout forces and a wider range of power thanks to the Bobcat® Tier 4 engine and powerful hydraulic system.
- The optional Automatic Ride Control detects when you’re carrying material and cushions the load to reduce spillage and increase operator comfort. The system works at any speed. Operators can flip a switch to turn it off for backdragging or other tasks.
T595 Specifications
Compare
Units
Metric T595 Key Specifications
Rated Operating Capacity (ISO)
2,200 lb
Operating Weight
8022 lb
Ground Pressure (Rubber)
5.1 psi
Auxiliary Std Flow
17.1 gal/min
Joystick Control
Standard
Engine
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
70 hp
Turbocharged Engine
yes
Performance
Rated Operating Capacity (ISO)
2,200 lb
Operating Capacity (50% of Tip)
3142 lb
Tipping Load
6517 lb
Operating Weight
8022 lb
Travel Speed
7.1 mph
Ground Pressure (Rubber)
5.1 psi
Capacities
Fuel Tank
36.5 gal
Hydraulic System
System Relief @ Quick Couplers
3,550 psi
Auxiliary Std Flow
17.1 gal/min
Dimension
Length
133 in
Length without Attachment
104.5 in
Length with Standard Bucket
133 in
Width
67 in
Width (with bucket)
68 in
Height
77.8 in
Height with Operator Cab
77.8 in
Height to Bucket Hinge Pin
119 in
Reach @ Maximum Height
34.9 in
Turning Radius
80 in
Length of track on ground
54.1 in
Track Width
12.6 in
Track Width - Optional
15.7 in
Features
Joystick Control
Standard
Air Conditioning
Optional
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Heater
Optional
Operating Lights
Standard
Suspension Seat
Standard
Two Speed Travel
Not Applicable
Deluxe Instrumentation
Optional
Engine Shutdown
Standard
Hydraulic Bucket Positioning
Optional
High Flow Option
Not Applicable
Auxiliary Hydraulics
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
Optional
ACS (Switchable Controls)
Not Applicable
Ride Control
Optional
Horn
Standard
T595 Features & Benefits
Performance
8
State-of-the-art, Non-DPF Engine
Bobcat engines meet Tier 4 regulations without a diesel particulate filter (DPF). This reduces downtime that occurs with DPF regeneration and minimizes long-term DPF maintenance costs. M3-Series loaders are designed to deliver more usable horsepower, so you can work quicker, lift more and outperform the competition.
Powerful Hydraulic Performance
Bobcat loaders deliver the right amount of power to each component. That directly translates to more power and balanced performance. Each component - including the engine, pumps, and hydraulic system - is engineered to deliver maximum hydraulic performance. For you, that means faster cycle times and better job-site productivity.
Selectable Joystick Control System
With Bobcat Selectable Joystick Controls (SJC), available on most loader models, the power is in your hands. They're the most advanced joysticks on the market, engineered and built with technology and features to help you run your machine and attachments more efficiently than ever.
No other joysticks in the industry come close to delivering this level of customization and control you'll find with SJC. Our system lets you control your loader and attachments easily and comfortably. They’re loaded with many Bobcat-exclusive features.
Durable Undercarriage System
You won’t find a tougher track system on the market. Every component is engineered for lasting durability, including steel imbed tracks, forged steel idlers and solid-mounted drive motors and hydraulic hoses. The undercarriage system for Bobcat® loaders also delivers a better-quality ride and simple maintenance.
Automatic Ride Control
Automatic ride control reduces material spillage, allowing you to travel at faster speeds across rough terrain. Thanks to its dampening effect, the option also increases operator comfort by offering a smoother ride.
Job-Matched Lift Arms
With two lift path options, M3-Series loaders have you covered. Vertical-lift-path machines provide more reach at full lift height, while radius-lift-path models offer maximum reach at truck bed height.
Remote Control
All loaders that are equipped with Selectable Joystick Control (SJC) can be operated by a remote-control system, so you can operate the machine without having to have an operator in the cab. The remote control is completely portable. If you have multiple machines, you can quickly remove the remote from one machine and attach it to another in minutes.
MaxControl Remote Operation
Control your Bobcat loader from outside the cab, using an app on your iOS smartphone. This system functions as an extra set of hands when help is limited, allowing two-person jobs to be handled by a single operator. It also enables operators to avoid repeated trips in and out of the cab.
Uptime Protection
5
Protected Loader Components
Jobsite hazards are everywhere and when your machine is out of operation for repairs, you lose time and money. With Bobcat skid-steer loaders and compact track loaders, you’re ready for nearly anything that you’ll encounter. Each component is designed for reliable protection. That means peace of mind, no matter the conditions of your jobsite.
Protection Technology
Reliable Bobcat equipment protects your reputation of timely, productive work. Every skid-steer and compact track loader is engineered with multiple protection technologies. Working together, they shield your machine and minimize the risk of failure. For you, that means better reliability and the confidence to do your work.
Cold Weather Engine Protection
Bobcat diesel engines are engineered to guard against the damaging effects of extremely cold weather. They prevent premature wear by automatically increasing the idle speed (rpm) to warm up oil and set a maximum operating speed (rpm) to prevent premature component wear or failure. Depending on the engine oil temperature, the protection may activate for several seconds to a few minutes.
Smart Cooling System
Bobcat M3-Series loaders feature the exclusive SmartFAN that only turns as fast as needed. The patented design cools more efficiently, while the radiator and hydraulic oil cooler are protected from jobsite hazards. Additionally, Bobcat M3-Series machines feature patented dual-path cooling, which draws cool, clean air from above, pulls warm air out of the engine compartment and forces it out two side vents, directing hot air away from the operator.
Innovative Fuel System
The innovative fuel system includes a variety of features that make maintenance and service more convenient. The fuel pump enables a self-priming system that continuously forces air out of the low-pressure fuel system and back into the fuel tank, eliminating the need for a primer bulb. The low-pressure fuel system also incorporates a fuel pressure sensor to continuously monitor the low-pressure fuel circuit and notify the operator of a plugged fuel filter. This makes it easier on operators if the fuel tank runs empty or if changing the fuel filter.
Comfort
5
Operator Comfort
When you step in the cab of a Bobcat loader, you’ll immediately notice the attention given to operator comfort. A long list of features is included in the cab with a large entry for easy access and 20% more interior space than competitors. Once inside, cab pressurization and an adjustable seat are just the beginning.
Leading Visibility
Bobcat skid-steer loader and compact track loader cabs are designed for all-around visibility. As you grade next to a building or load the machine on a trailer, you’ll gain optimal sight lines for easier operation. View the bucket corners from your seat and easily see the cutting edge. Your tracks or tires are visible without raising the loader arms. A large top window gives you visibility while dumping material into a high-sided truck.
Adaptable Controls
Intuitive and adaptable controls on Bobcat skid-steer and compact track loaders make it easy for operators to be as productive as possible. Whether your job requires a fine touch working close to walls and obstacles or quick, responsive work group action and maneuverability, Bobcat gives you the ability to choose the best controls for the task.
When paired with SJC controls, the engine speed can be controlled with the operator’s foot, while fingertip controls simplify the operation of soil conditioners, sweepers, tillers, buckets and other attachments. Foot pedals can also be adjusted to your preferences.
Pressurized Enclosed Cab
Bobcat loaders with enclosed cabs feature a best-in-class, pressurizing front door seal that repels dust and keeps clean, heated or air-conditioned air inside, for maximum comfort.
Hydraulically Cushioned Cylinders
Smooth, quick Bobcat lift cylinders softly lower the lift arms back to their original position on the loader frame. This occurs automatically with every lift cycle to reduce noise and increase comfort during operation.
Serviceability
5
Full-Access Serviceability
No other loader matches the serviceability of Bobcat skid-steer loaders and compact track loaders. Our large, swing-open tailgate provides convenient access to routine maintenance points. Unlike other brands, there are no radiators to move, lift arms to raise or lift-arm support devices to install in order to service the machine. Spend your time completing maintenance work rather than struggling to gain access.
Easy Grease Point Access
Maintenance is easier and faster with easy-to-access grease zerk locations on critical pivot points. With Bobcat compact loaders, there’s no need to lay on the ground or stand on tracks or tires to access grease points.
Tip-Up Loader Cab
For non-routine service, simply remove two nuts and tip back the cab to access hydraulic and hydrostatic components in minutes.
Transverse Engine & Belt Drive
Bobcat loaders offer one-sided serviceability thanks to the exclusive belt-drive system. This durable technology with a multi-groove Kevlar™ belt allows your loader engine to run slower for reduced noise and increased durability. It’s also more efficient with an optimized engine-to-pump package.
Hydraulic Oil Site Gauge
Check your hydraulic oil level quickly and easily as you walk by your machine. Keep an eye on hydraulic oil levels and simplify your daily checks.
Versatility
3
Attachment Versatility
Our attachments help you do much more than dig. Bobcat offers attachment versatility across carriers combined with unbeatable attachment support from the Bobcat dealer network.
Bob-Tach Attachment System
Change attachments quickly and easily using the time-tested standard Bob-Tach mounting system included with every loader, or upgrade to the Power Bob-Tach system - available on select models - for swapping non-hydraulic attachments without leaving your seat.
Power Bob-Tach System
Quickly swap non-hydraulic attachments without leaving your seat using the Bob-Tach attachment mounting system available on select models. And for hydraulic attachments, all you need to do is hook up the hoses after you have secured the attachment.
Using the Power Bob-Tach mounting system is fast and easy. After lining up your attachment, simply press a switch inside the cab to engage the wedges into the attachment. They lock into place and keep the attachment secure.
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
