Hydraulic Connections
CONNECT AND CONTROL WITH CONFIDENCE
Hydraulic Connections
CONNECT AND CONTROL WITH CONFIDENCE
Bobcat loaders are designed to make hydraulic attachment setup straightforward, with clearly located auxiliary hydraulic connections and available attachment control connections. Depending on the model and attachment, operators can connect hydraulic hoses and compatible 7-pin controls, then manage attachment hydraulic functions from the cab. Non-hydraulic attachments, such as buckets and pallet forks, do not require a hydraulic connection.
Standard-Flow
Standard-flow hydraulics come factory-equipped on every Bobcat Classic and Pro loader, delivering 17.6 to 23.6 gallons per minute at 3,500 psi, depending on the model. Standard-flow powers the majority of hydraulic attachments, giving operators dependable performance for a wide range of everyday applications.
Popular attachments that put standard-flow to work:
- Auger
- Trencher
- Hydraulic Breaker
- Grapple
- Sweeper
- Brushcat™ Rotary Cutter — select models
- Soil Conditioner — select models
- Snowblower — standard-flow models available
High-Flow
When the job calls for more hydraulic horsepower, Bobcat high-flow hydraulics give operators the extra output needed for demanding attachments. Available on select models, high-flow boosts hydraulic output beyond standard flow’s 23 gallons per minute to as much as 36.6 gallons per minute at 3,500 psi, depending on the loader model.
With high-flow equipped, operators can switch from standard-flow to high-flow with the push of a button, giving them added hydraulic power when the attachment calls for it.
Common attachments that put high-flow to work:
- Stump Grinder
- Planer
- Trencher — select models
- Wheel Saw
- Drum Mulcher
- Brushcat™ Rotary Cutter — select high-flow models
- Heavy-Duty Brush Cutter — select high-flow models
- Soil Conditioner — select high-flow models
- Snowblower — high-flow models are also available
Super-Flow
Exclusively available on Bobcat Pro S86-2 skid-steer loaders and Pro T86-2 compact track loaders, super-flow hydraulics deliver 42 gallons per minute at 4,061 psi for the highest level of hydraulic performance Bobcat offers. Built for demanding, high-output attachments, super-flow brings added hydraulic capability to applications like drum mulching, pavement milling and heavy land clearing.
Super-flow-equipped loaders give operators three hydraulic flow options — standard, high and super — so they can match hydraulic output to the attachment and application.
Because the system also supports standard-flow and high-flow attachments, operators get high-output capability without giving up attachment versatility.
Select attachments that put super flow
to work:
PUT YOUR HYDRAULICS
TO WORK
PUT YOUR HYDRAULICS
TO WORK
Pair your Bobcat loader with one of over sixty attachments built for everything from everyday jobs to demanding high-flow and super-flow applications.
Hydraulic Fluids
KEEP HYDRAULIC PERFORMANCE FLOWING
Hydraulic Fluids
KEEP HYDRAULIC PERFORMANCE FLOWING

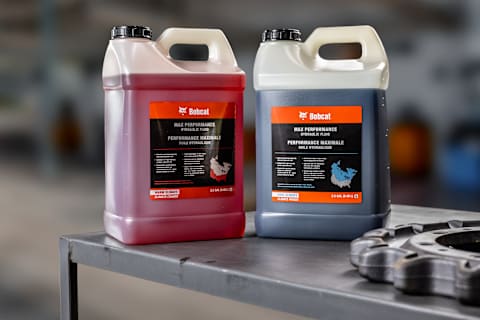

Choose Bobcat hydraulic fluid for the routine maintenance that helps keep your loader’s hydraulic system ready for the work ahead.
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped), lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
